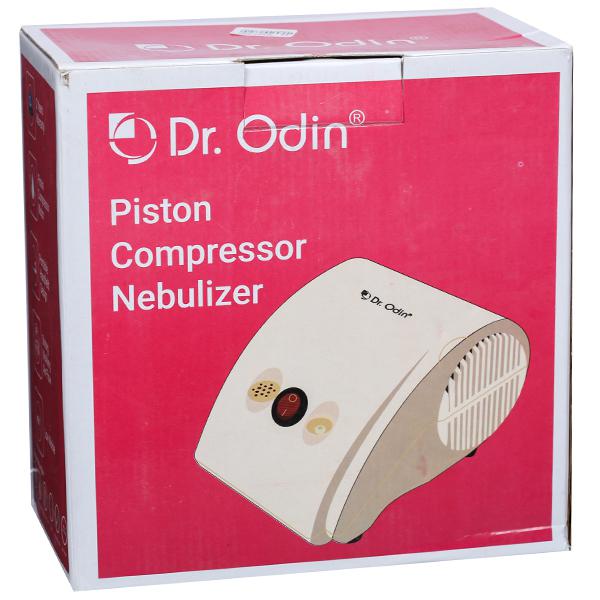

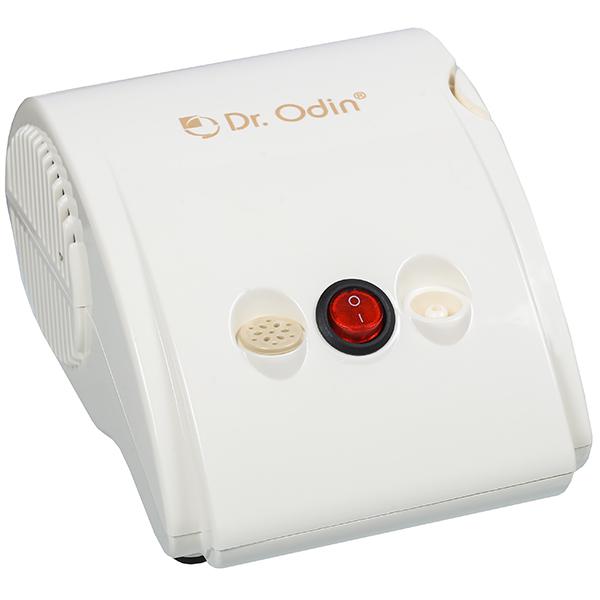

Piston Compressor Nebulizer OD304 (Dr. Odin) Device 170 x 125 x 88 mm

Pack Of: 1

Number of Content In a Sales Package: 1 N

Product Type: Piston Compressor Nebulizer

Packaging Type: Mono-Carton

Model No: OD-304

Dimension: 19.5 cm (L) x 20 cm (H) x 11.5 cm (W)

Ideal For: Adults and Children

Warranty: 2 Years

Product Description:

Piston Compressor Nebulizer (Dr. Odin) is a newly designed drug delivery device used for the treatment of upper and lower respiratory tract diseases, cough, asthma, rhinitis and sore throat.

Dr. Odin Piston Compressor Nebulizer comes with a robust working flow which can help medicine reach directly to the lungs.

Content of the box:

Adult Mask, Child Mask, Medication Cup, Tube, Mouth Piece and Air Filter.

Features:

• Piston compressor motor
• Portable handheld design
• Strong working airflow
• Low noise
• Medication capacity 6 ml

Usage Direction:

• Before use, please check the package insert leaflet or label instruction that comes with the product.

Caution:

• Keep the unit away from water
• Always unplug the product immediately after use
• Never block the air openings of the main unit
• Do not store the unit under direct sunlight
• Keep the unit out of reach of small children
• Wipe daily with a damp cloth

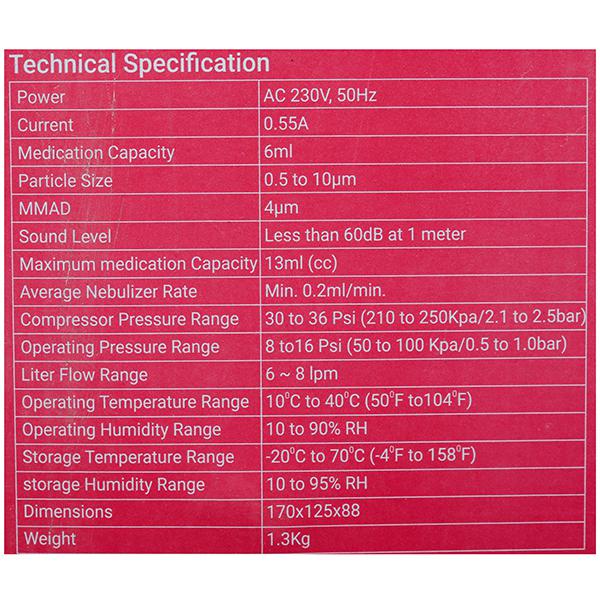

Technical Specification:

• Power: AC 230V, 50 Hz
• Current: 0.55 A
• Medication Capacity: 6 ml
• Particle Size: 0.5 to 10 µm
• MMAD: 4 µm
• Sound Level: Less than 60dB at 1 meter
• Maximum medication Capacity: 13 ml (cc)
• Compressor Pressure Range: 30 to 36 Psi (210 to 250Kpa/2.1 to 2.5bar)
• Operating Pressure Range: 8 to16 Psi (50 to 100 Kpa/0.5 to 1.0bar)
• Liter Flow Range: 6~8 Ipm
• Operating Temperature Range: 10°C to 40°C (50°F to104°F)
• Operating Humidity Range: 10 to 90% RH
• Dimension: 170 x 125 x 88
• Weight: 1.3 kg

Storage Conditions:

• Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)
• Storage Humidity Range: 10 to 95% RH
• Keep out of reach of children.
